Peptide Characterization Reporting Checklist: 2026 Guide
A complete peptide characterization reporting checklist for therapeutic development requires, at minimum: primary sequence confirmation via LC-MS/MS, amino acid composition analysis (AAA), purity profiling through RP-HPLC or LC-MS, higher-order structural evidence from Circular Dichroism (CD) or Nuclear Magnetic Resonance (NMR) when mechanism of action is structure-dependent, and a full impurity profile with qualification thresholds. These requirements are grounded in ICH Q6B and current FDA peptide guidance, and they apply across every stage of Chemistry, Manufacturing, and Controls (CMC) documentation.
The core checklist elements for a compliant characterization package are:
Primary structure confirmation: LC-MS/MS sequencing, molecular weight determination, fragmentation data with annotated spectra
Amino acid analysis (AAA): Quantitative composition, net peptide content, extinction coefficient calculations
Purity profiling: RP-HPLC and LC-MS with impurity identification down to 0.1% reporting threshold
Higher-order structure: CD spectroscopy, NMR (1D and 2D where applicable), FTIR for secondary and tertiary structural markers
Impurity characterization: Product-related impurities (truncated sequences, oxidized residues, diastereomers), process-related contaminants (residual solvents, elemental impurities, endotoxins)
Batch consistency data: Statistical summaries (mean, standard deviation, %RSD) across replicates, with batch-to-batch comparisons
Raw data package: Original instrument files (.raw, .wiff), annotated chromatograms, instrument qualification records
Stability data: Forced degradation study results, stress condition outcomes, shelf-life supporting data
Manufacturing documentation: Synthesis process parameters, in-process controls, resin and reagent certificates
Solubility and aggregation assessment: Dynamic light scattering (DLS) data, aggregation propensity testing results
Why regulatory bodies require a full characterization report
The regulatory rationale for thorough peptide characterization is not procedural formality. The FDA and ICH treat characterization data as the primary evidence that a therapeutic peptide’s identity, purity, safety, and potency are controlled and reproducible before any clinical exposure occurs.
ICH Q6B sets the foundational acceptance criteria for biological and peptide products, covering visual inspection, biological activity assays, immunochemical evaluation, purity testing, and quantification. For synthetic peptides specifically, the FDA’s guidance on ANDAs for synthetic peptides adds a layer of comparative requirements: the proposed product must demonstrate active ingredient sameness against the Reference Listed Drug (RLD), including primary sequence, physicochemical properties, oligomer and aggregation states, and biological activity.
The consequences of gaps in characterization documentation are concrete. Incomplete impurity profiling, missing structural data, or unvalidated analytical methods can trigger refuse-to-file decisions, clinical holds, or requests for additional comparative studies that add months to a development timeline. Regulatory agencies do not accept a high purity percentage as a substitute for a detailed impurity profile.
“A new specified peptide-related impurity level of no more than 0.5 percent of the drug substance for purposes of evaluating the appropriateness of submission as an ANDA is consistent with the small amount of unspecified peptide-related impurities observed in finished peptide drug products due to batch-to-batch variability.”
— FDA Guidance on Synthetic Peptides
Key regulatory documentation requirements for CMC submissions include:
Demonstration of identity, purity, potency, and safety prior to clinical trials
Comparative impurity profiling against the RLD for ANDA submissions
Validated analytical methods with system suitability criteria
Batch records linking raw material certificates to final analytical results
Justification for any absent characterization test, particularly structural methods
Understanding the therapeutic peptide classification framework for a given compound also determines which characterization tests are mandatory versus conditional, since peptides of 41 to 99 amino acids classified as chemically synthesized polypeptides carry distinct regulatory expectations compared to shorter synthetic peptides.
How to confirm primary structure and sequence fidelity
Primary structure verification is the non-negotiable starting point of any characterization package. Two orthogonal methods are the standard expectation from both the FDA and EMA: typically, mass spectrometry combined with peptide mapping or NMR to unequivocally confirm the active peptide’s structural integrity.
LC-MS/MS is the workhorse for sequence confirmation. It provides molecular weight determination and fragmentation data that, when annotated with theoretical and observed mass values, establishes sequence coverage across the full peptide chain. For longer peptides where MS/MS sequencing data becomes difficult to interpret, peptide mapping through enzymatic or chemical cleavage followed by LC-MS analysis of the resulting fragments fills the gap. The EMA’s guideline on synthetic peptides explicitly references Ph. Eur. general chapter 2.2.55 for peptide mapping methodology.
NMR adds a complementary layer that MS alone cannot provide. One-dimensional and two-dimensional NMR techniques confirm the number and types of proton nuclei, identify amino acid residues, and assign carbon and nitrogen atoms. For peptides with defined secondary or tertiary structural motifs, 2D NMR provides proof of specific structure elements including disulfide connectivity and stereochemical configuration.
Method Primary Output Validation Criteria LC-MS/MS Molecular weight, sequence fragmentation Mass accuracy, sequence coverage, annotated spectra Peptide mapping (LC-MS) Fragment identity, modification sites Cleavage efficiency, peak assignment completeness 1D/2D NMR Proton/carbon assignment, structural motifs Chemical shift assignments, coupling constants Amino acid analysis (AAA) Composition ratios, residue identity Molar ratios vs. theoretical, hydrolysis conditions Edman degradation N-terminal sequence Cycle yield, PTM identification
Pro Tip: When submitting fragmentation data for LC-MS/MS, include both the annotated spectrum and a table of theoretical versus observed mass values for each fragment ion. Reviewers flag submissions that provide spectra without the accompanying mass assignment table, which delays the review cycle.

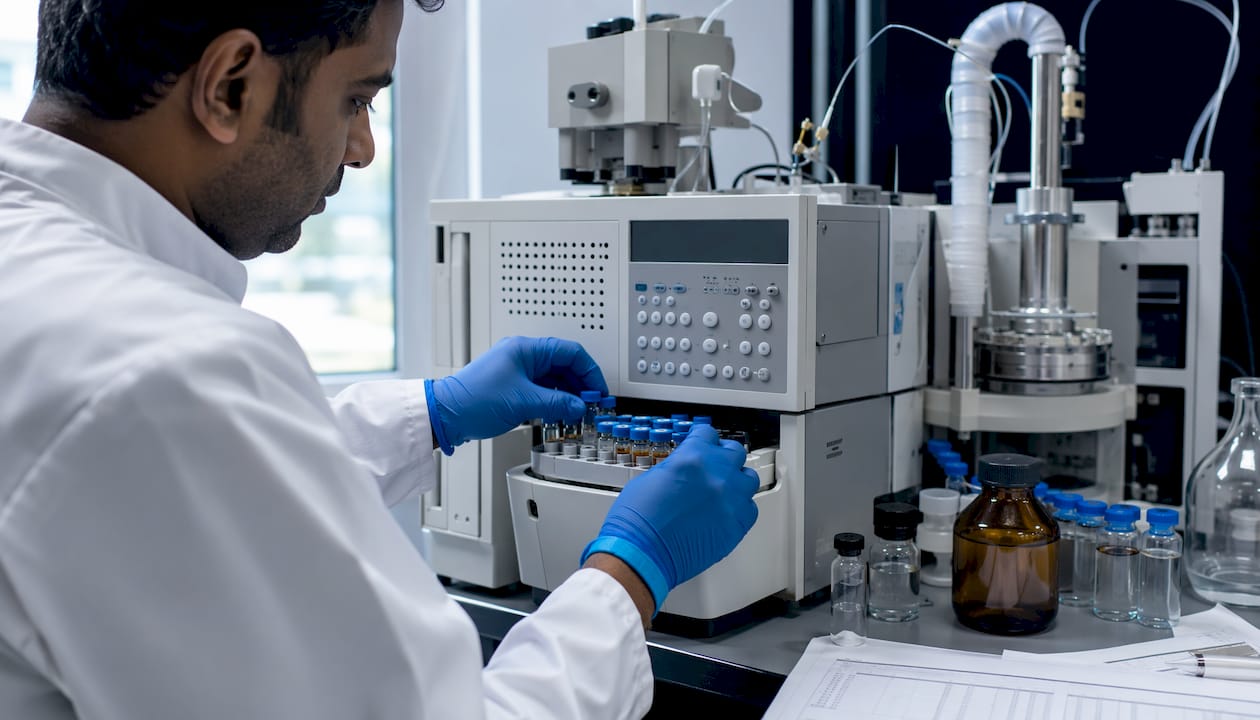

Quantitative amino acid analysis and net peptide content
Amino acid analysis (AAA) serves two distinct functions in a characterization package: it confirms the qualitative composition of the peptide and provides the quantitative basis for calculating net peptide content, which directly feeds into label claim compliance and formulation accuracy.
The standard workflow involves acid hydrolysis of the peptide followed by chromatographic separation and detection of the released amino acids. Hydrolysis conditions must be optimized for the specific sequence, since certain residues (tryptophan, cysteine) are labile under standard acid conditions and require modified protocols. The resulting molar ratios are compared against the theoretical composition derived from the peptide sequence.
Net peptide content calculation uses the AAA data in combination with extinction coefficient determination, where applicable, to express the actual peptide mass as a percentage of the total sample weight. This figure accounts for residual water, counterions, and other non-peptide mass contributions that would otherwise inflate the apparent purity. For regulatory submissions, net peptide content is a release specification, not an optional data point.
Key outputs and their regulatory relevance:
Molar amino acid ratios: Compared against theoretical values to confirm sequence composition
Net peptide content (%): Corrects for water content, salts, and residual solvents in the bulk material
Extinction coefficient: Used for UV-based concentration determination in subsequent assays
Hydrolysis recovery data: Documents residue-specific losses and corrections applied
Batch-to-batch comparison: Tracks composition consistency across manufacturing lots
These data feed directly into stability and purity evaluations. A shift in AAA molar ratios between batches can indicate incomplete synthesis, racemization at specific residues, or degradation during storage, making AAA a sensitive early indicator of manufacturing consistency problems.

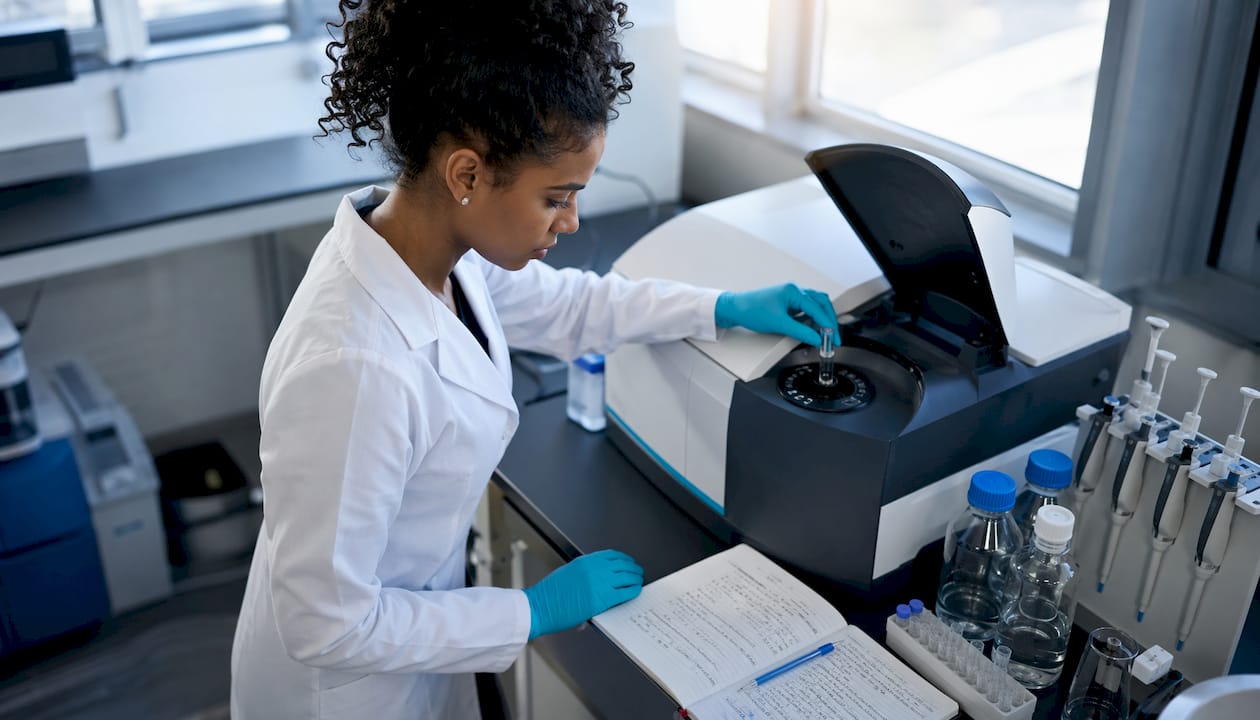

How CD, NMR, and FTIR reveal higher-order peptide structure
Higher-order structural characterization is conditionally required, but the condition is broader than many teams initially assume. When a peptide’s mechanism of action is linked to its folded conformation, or when the peptide contains defined secondary structure elements such as alpha helices or beta sheets, regulators expect orthogonal biophysical data demonstrating that the manufactured product adopts the correct conformation.
CD, FTIR, and NMR provide complementary information on secondary and tertiary folding. CD spectroscopy in the far-UV region (190–260 nm) generates characteristic spectra for alpha-helical, beta-sheet, and random coil conformations, making it the most common first-line technique for secondary structure assessment. FTIR spectroscopy provides information on amide bond vibrations, which correlate with backbone conformation and can detect aggregation-related structural changes. NMR, particularly 2D techniques such as COSY and NOESY, offers atomic-level resolution of structural motifs and is the method of choice when specific tertiary contacts or disulfide connectivity must be confirmed.
The practical implication: teams must document the justification for omitting higher-order structural tests, not simply skip them. Failing to provide that justification, or providing it without supporting development data, creates a regulatory gap that reviewers consistently flag.
Key considerations for higher-order structural reporting:
CD spectra should be acquired in the formulation buffer at physiologically relevant concentrations
FTIR data should include both the amide I and amide II band regions with deconvolution analysis
NMR is resource-intensive but may be required for peptides with defined tertiary structure or disulfide-bonded frameworks
Conformational stability under stress conditions (temperature, pH) should be assessed as part of forced degradation studies
Biological assays may substitute for physicochemical structural data when the latter cannot adequately characterize the mechanism-linked conformation
Pro Tip: CD spectroscopy is sensitive to buffer composition and peptide concentration. Run CD measurements at multiple concentrations to rule out concentration-dependent aggregation artifacts before interpreting secondary structure content. A spectrum that changes shape with concentration is a conformational instability signal, not a measurement error.
Purity profiling and impurity characterization frameworks
Purity in a regulatory submission is not a single percentage. It is a detailed map of what the sample contains beyond the target peptide, with each component identified, quantified, and assessed for safety relevance.
RP-HPLC remains the primary method for purity profiling because it separates peptide-related impurities based on hydrophobicity, resolving truncated sequences, deletion analogs, and oxidized or deamidated variants from the main peak. Ion-exchange chromatography adds orthogonal resolution based on charge, separating species that co-elute under reversed-phase conditions. Both methods are typically coupled to UV detection at 214 nm (amide bond absorption) and, for comprehensive characterization, to mass spectrometric detection for impurity identification.
Regulatory submissions require impurity identification at levels of 0.1% of the drug substance or greater for the peptides covered by FDA synthetic peptide guidance. For ANDA submissions, any new specified impurity not present in the RLD must remain at or below 0.5% and must be structurally characterized with a toxicological justification.
Impurity Category Detection Method Reporting Threshold Truncated sequences RP-HPLC, LC-MS ≥0.1% Oxidized residues RP-HPLC, LC-MS/MS ≥0.1% Diastereomers / epimers Chiral GC-MS, RP-HPLC Justified by risk analysis Residual solvents GC headspace ICH Q3C limits Elemental impurities ICP-MS ICH Q3D limits Endotoxins LAL or recombinant factor C assay Compendial limits
Process-related contaminants require separate screening. Residual solvents from solid-phase peptide synthesis (SPPS), including DMF, DCM, and NMP, are quantified by GC headspace analysis against ICH Q3C limits. Elemental impurities from reagents, resins, and equipment are screened by ICP-MS per ICH Q3D. Endotoxin and bioburden testing, covered in detail in sterility testing protocols, rounds out the safety screening package.
Batch-to-batch consistency in the impurity profile is as important as the absolute impurity levels. A profile that shifts between lots, even if each lot individually passes specifications, signals a manufacturing process that is not adequately controlled.
Designing stability-indicating assays and forced degradation studies
Stability-indicating assays demonstrate that the analytical method can detect degradation products and distinguish them from the main peptide peak. Forced degradation studies generate those degradation products deliberately, under controlled stress conditions, to characterize the peptide’s degradation pathways and confirm that the stability-indicating method is fit for purpose.
The standard stress conditions for forced degradation cover acid hydrolysis, base hydrolysis, oxidative stress (hydrogen peroxide), thermal stress, and photolytic stress (ICH Q1B light conditions). Each condition targets a different degradation mechanism: acid and base conditions probe hydrolytic susceptibility, oxidative conditions identify methionine and tryptophan oxidation sites, thermal stress reveals aggregation and deamidation propensity, and photolysis identifies light-sensitive residues.
Stress Condition Stressor Primary Degradation Pathway Analytical Endpoint Acid hydrolysis HCl, 0.1–1 M, 40°C Peptide bond cleavage, Asp-Pro hydrolysis RP-HPLC purity, LC-MS fragment ID Base hydrolysis NaOH, 0.1 M Deamidation, racemization RP-HPLC, AAA Oxidative stress H₂O₂, 3% Met/Trp oxidation RP-HPLC, LC-MS/MS Thermal stress 40°C, 75% RH Aggregation, deamidation DLS, SEC, RP-HPLC Photolytic stress ICH Q1B conditions Phe/Trp/Tyr photodegradation RP-HPLC, UV-Vis
Stability studies using controlled stress conditions and validated analytical methods detect degradation and support shelf-life assignment. The forced degradation data also inform the selection of storage conditions, packaging specifications, and in-use stability requirements that appear in the regulatory filing.
Pro Tip: Run the forced degradation study before finalizing the stability-indicating HPLC method. Degradation products identified under stress conditions must be resolved from the main peak in the final method. Discovering a co-eluting degradant after method validation requires a full revalidation cycle.
Documentation for forced degradation studies should capture the exact stress conditions applied, the duration and temperature of each stress, the analytical methods and instruments used, the identity of all degradation products detected, and the mass balance calculation confirming that the sum of main peak and degradant peaks accounts for the starting material.
Best practices for compiling and reviewing characterization reports
A characterization report that satisfies regulatory reviewers is not simply a collection of analytical results. It is a traceable, auditable package where every data point links back to a validated method, a qualified instrument, and a specific batch of material.
Raw analytical data files, including original instrument outputs (.raw, .wiff formats), annotated chromatograms, and instrument qualification records, must accompany the summary results. Statistical summaries covering mean, standard deviation, and %RSD across replicates demonstrate method precision and batch reproducibility. Reviewers increasingly check that the statistical summaries are consistent with the raw data, so any discrepancy between the two is a data integrity flag.
Traceability requires linking each testing activity to the batch record. Raw material certificates (resins, protected amino acids, solvents) should be cross-referenced to the synthesis batch. Instrument qualification records should be dated and version-controlled. Any out-of-specification result, even one that was subsequently investigated and closed, must be documented with the investigation outcome included in the package.
Pro Tip: Organize the characterization report as a modular document: one module per analytical method, each containing the method description, validation summary, raw data, and results table. This structure maps directly to the CMC section format that FDA reviewers expect and makes gap identification faster during internal review.
Evolving 2026 regulatory expectations place greater weight on demonstrating manufacturing reproducibility across multiple batches, not just a single characterization lot. Teams that submit characterization data from a single batch face requests for additional batch data, particularly for peptides with known aggregation or racemization tendencies. Assessing supplier GMP compliance early in the sourcing process reduces the risk of receiving batches that cannot support a multi-batch characterization package.
Documenting peptide synthesis and manufacturing process details
Manufacturing process documentation is a required component of the CMC section, not a background reference. Regulatory reviewers use it to assess whether the synthesis process is controlled well enough to produce consistent batches with the characterized impurity profile.
For solid-phase peptide synthesis (SPPS), the documentation package covers resin specifications (substitution level, particle size distribution, swelling characteristics), protected amino acid purity certificates, coupling reagent and solvent grades, and the sequence of coupling and deprotection steps. In-process monitoring data, including Kaiser, TNBS, and chloranil colorimetric tests used to confirm coupling completion at each step, should be retained as part of the batch record. These tests are the primary real-time quality control mechanism during synthesis, and their absence from the documentation record raises questions about process control.
Critical process parameters for the final drug product include component addition order, holding times, bulk solution storage conditions, and lyophilization cycle settings. Lyophilization parameters, specifically the primary and secondary drying temperatures, shelf temperatures, and chamber pressure profiles, directly affect the physical form and residual moisture content of the final peptide, both of which influence stability and reconstitution behavior. Deviations from the validated lyophilization cycle must be documented and assessed for impact on product quality.
Batch traceability requires linking raw material certificates to instrument qualification records and analytical data to establish a fully auditable characterization package. When manufacturing is outsourced, the documentation transfer must include validated methods, raw data from prior batches, and system suitability criteria, so the contracting laboratory does not need to re-optimize methods from scratch. Method re-optimization at a contract site without the original validation data is one of the more common sources of costly delays in outsourced characterization programs.
Assessing peptide solubility and aggregation propensity
Solubility and aggregation behavior are physicochemical properties that affect formulation feasibility, dosing accuracy, and patient safety. Both are required characterization elements under the EMA guideline on synthetic peptides and are increasingly scrutinized by FDA reviewers for peptides with known aggregation tendencies, such as GLP-1 agonists and amyloidogenic sequences.
Solubility assessment involves preparing peptide solutions across a range of pH values and buffer compositions, then measuring the dissolved concentration by UV absorbance or HPLC after centrifugation or filtration to remove undissolved material. The isoelectric point (pI), calculated from the amino acid sequence or determined experimentally, predicts the pH of minimum solubility and guides formulation buffer selection. Hygroscopicity studies and thermogravimetric analysis (TGA) characterize the water content and physical stability of the lyophilized solid.
Aggregation propensity testing uses several orthogonal techniques. Dynamic light scattering (DLS) measures particle size distribution in solution and detects submicron aggregates that are invisible to standard HPLC methods. Size exclusion chromatography (SEC) with UV detection quantifies soluble aggregates and oligomers as a percentage of total peak area. For amyloidogenic peptides, Thioflavin T (ThT) dye assays detect fibrillar aggregate formation through fluorescence enhancement, and intrinsic fluorescence spectroscopy can track conformational changes associated with aggregation onset.
The aggregation data feed directly into the stability program. A peptide that aggregates under accelerated storage conditions (40°C, 75% relative humidity) requires formulation modifications, excipient screening, or revised storage specifications before the stability-indicating method can support a shelf-life claim. Aggregation detected only at the characterization stage, before formulation development is complete, is far less costly to address than aggregation discovered during stability studies conducted on the final drug product. Ingredient-level documentation resources, such as the supplement ingredient library at RankOfSupplements, can provide useful reference data on excipient compatibility when evaluating formulation options for solubility-challenged peptides.
Key Takeaways
A complete peptide characterization reporting checklist requires primary sequence confirmation, detailed impurity profiling, validated analytical methods, and full raw data documentation to meet 2026 FDA and ICH Q6B standards.
Point Details Two orthogonal identity methods FDA and EMA both require at least two orthogonal methods, such as LC-MS/MS combined with NMR or peptide mapping, to confirm active peptide structural integrity. Impurity threshold at 0.1% Peptide-related impurities must be identified at levels of 0.1% or greater; new specified impurities in ANDA submissions must not exceed 0.5% without toxicological justification. Raw data is mandatory Original instrument files, annotated chromatograms, and instrument qualification records must accompany summary results to satisfy FDA data integrity requirements. Higher-order structure requires justification Omitting CD or NMR data requires documented justification supported by development data, not simply an absence of the test in the package. Multi-batch consistency expected 2026 regulatory expectations favor characterization data from multiple batches to demonstrate manufacturing reproducibility, not just a single characterization lot.
